Description
Provide overall solution for camera module

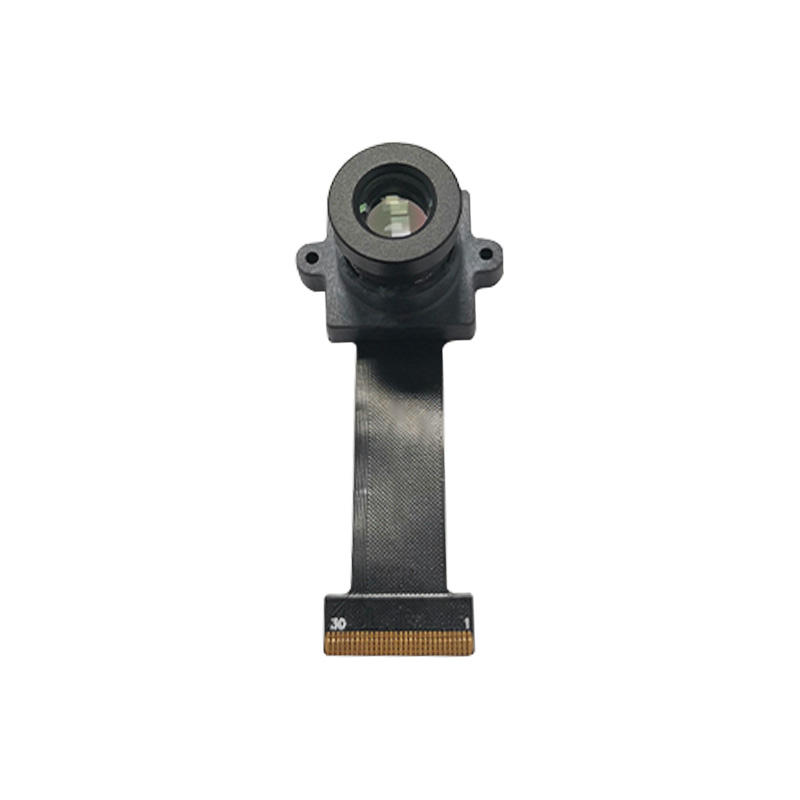

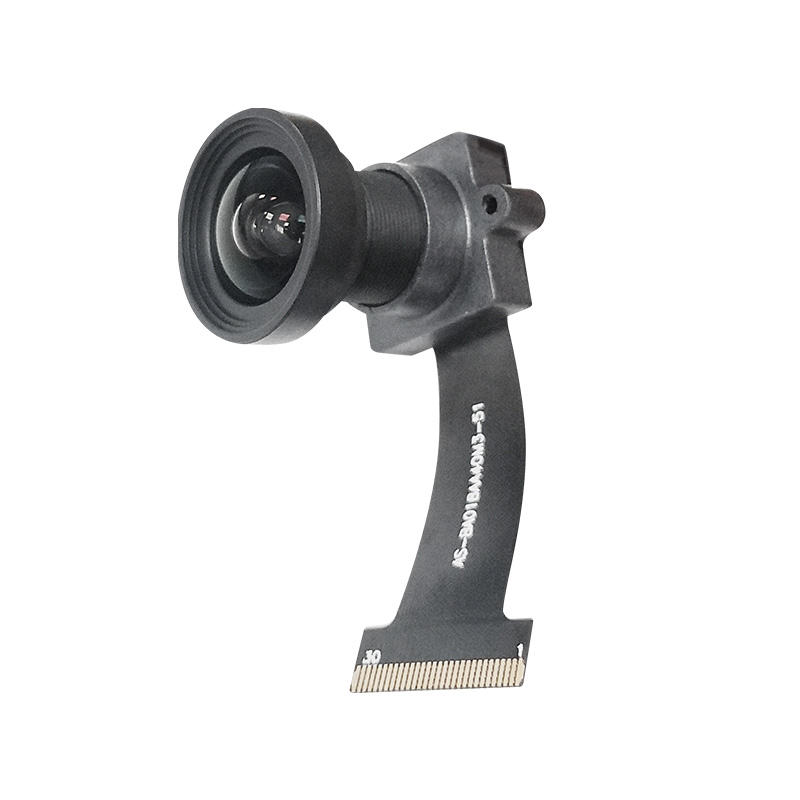

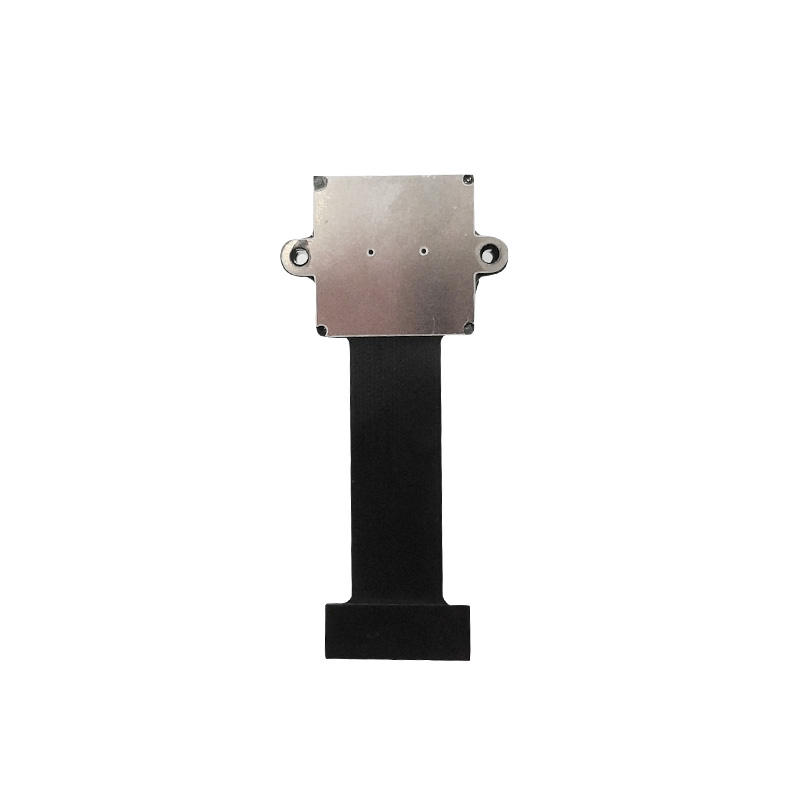

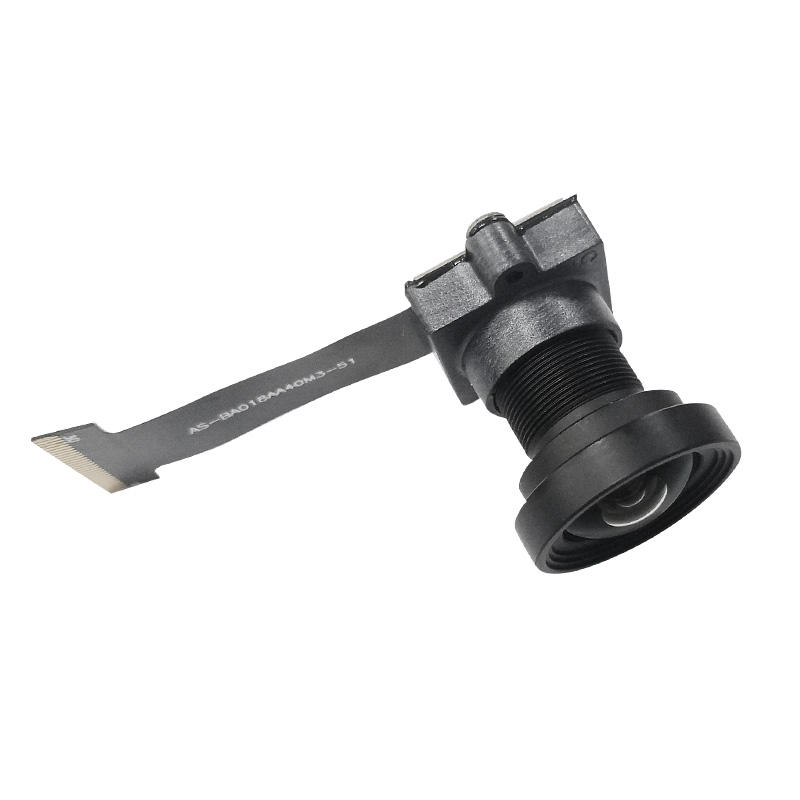

Product Nob.：DGZX-AS-BA018AA40M3-51
Active pixels：4MP 2688×1520
Sensor：OS04A10 (1/1.79″) CMOS
Angle/EFL：112/3.5mm (customizable)
F.NO：2.8士0.5% (customizable)
Distortion：<-0.1%
Format：YUY2/YUV/JPEG/MJPEG
Frame rate：30×3 fps @ 1520p
Features：● Security camera ● VR/AR ● ADAS ● Machine vision ● Action camera ● High resolution consumer camera
Interface：MIPI
Size：L*W*H:51*24*24.6mm (customizable)
Security camera | HDR | Large aperture wide-angle lens
2688*1520 HD image, 1520p@90fps high-speed shooting
Approximately twice the NIR sensitivity, using less infrared LEDauxiliary lighting, and obtaining high-quality imaging in the lowillumination and near-infrared bands
Accurately capture highlights and shadow details in dynamic scenes,and achieve high quality under low light and backlightlmage
Low power consumption, high sensitivity, low dark current
Undistorted,panoramic lens can be selected arbitrarilyto meet all your needs
Applied to face recognition,biological detection, ADAS, AR, VRsecurity camera,sports camera, machine vision, driving recorder,etc.
● ADAS ● AR ● VR ● Action camera ● Driving recorder ● Law enforcement recorders ● Security Monitoring ● Machine vision ● Face recognition
