Description
Provide overall solution for camera module

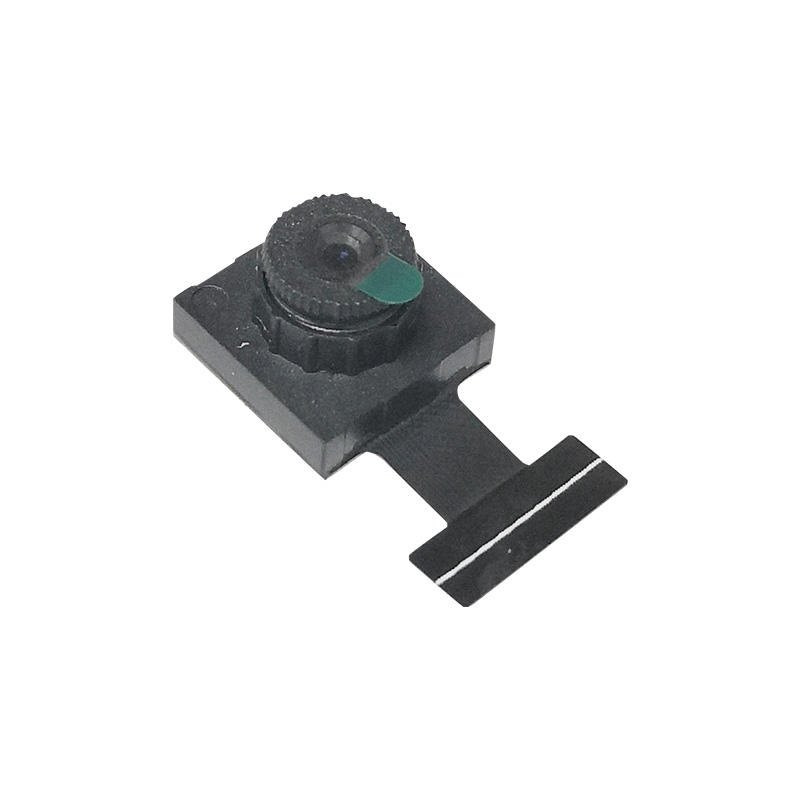

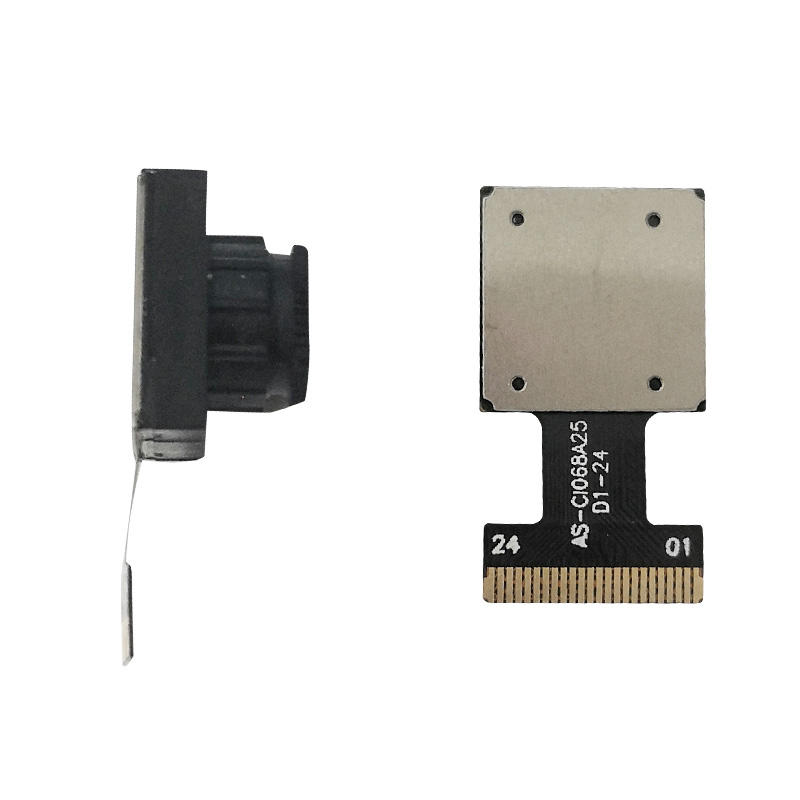

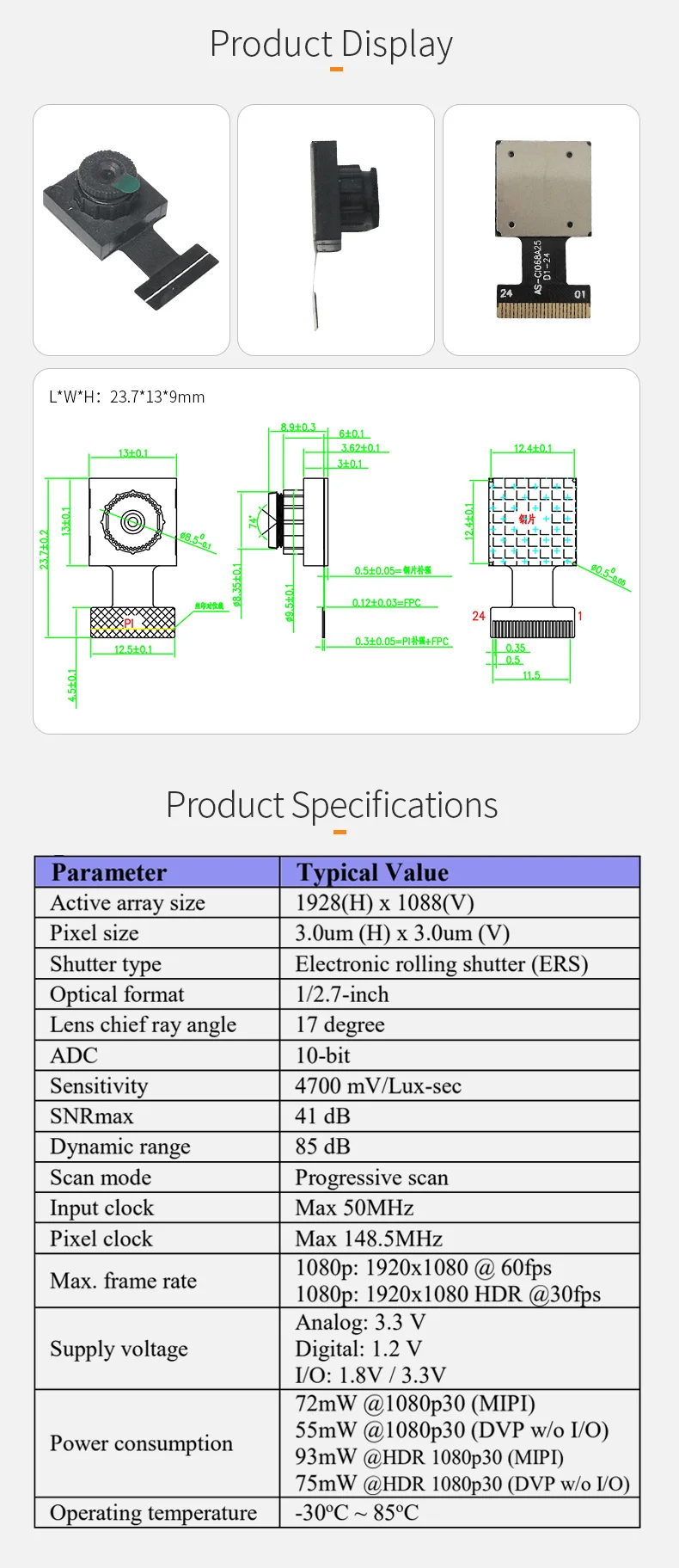

Product Typ：DGZX-AS-CI068A25D1-24
Active pixels：2MP 1920X1080
Sensor：PS5260 (1/2.7″) CMOS
EFL/View Angel：74/4.35mm (customizable)
F.NO/Distortion：2.2/<-0.1% (customizable)
Format：YUV2;MJPG
Frame rate：1080P:60 fps 1080P:HDR 30fps
Features：● Face recognition ● Mobile payment ● Smart home ● Drone ● Security monitoring ● Action camera ● Automotive
Interface：12bit parallel DVP (Customizable MIPI USB module)

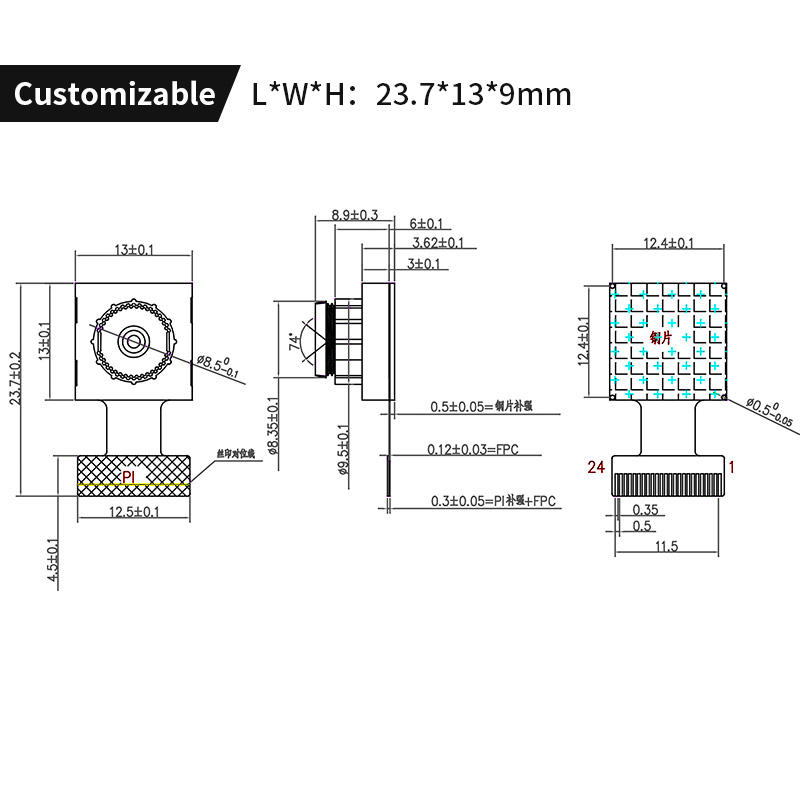

Size：L*W*H:23.7*13*9mm(customizable)
High speed 60 frames/s | 74 no distortion(Lens optional)
2MP(1920*1080), 1080P@60fps smooth video output,no smear
Accurately capture highlights and shadow details in dynamicscenes,dynamic range 85 dB,high light sensitivity(4700 mV/Lux-sec) and clear night vision
HD image,low power,highly integrated CMOS image sensor
Undistorted, panoramic lens can be selected arbitrarilyto meet all your needs
The product is suitable for intelligent identification system,smart home, visual doorbell, UAV products and other areasthat need image acquisition
● Face recognition ● Mobile payment ● Video door phone ● Supervising equipment ● Video conference ● Action camera ● Cell phone ● Drone ● Big screen all-in-one
